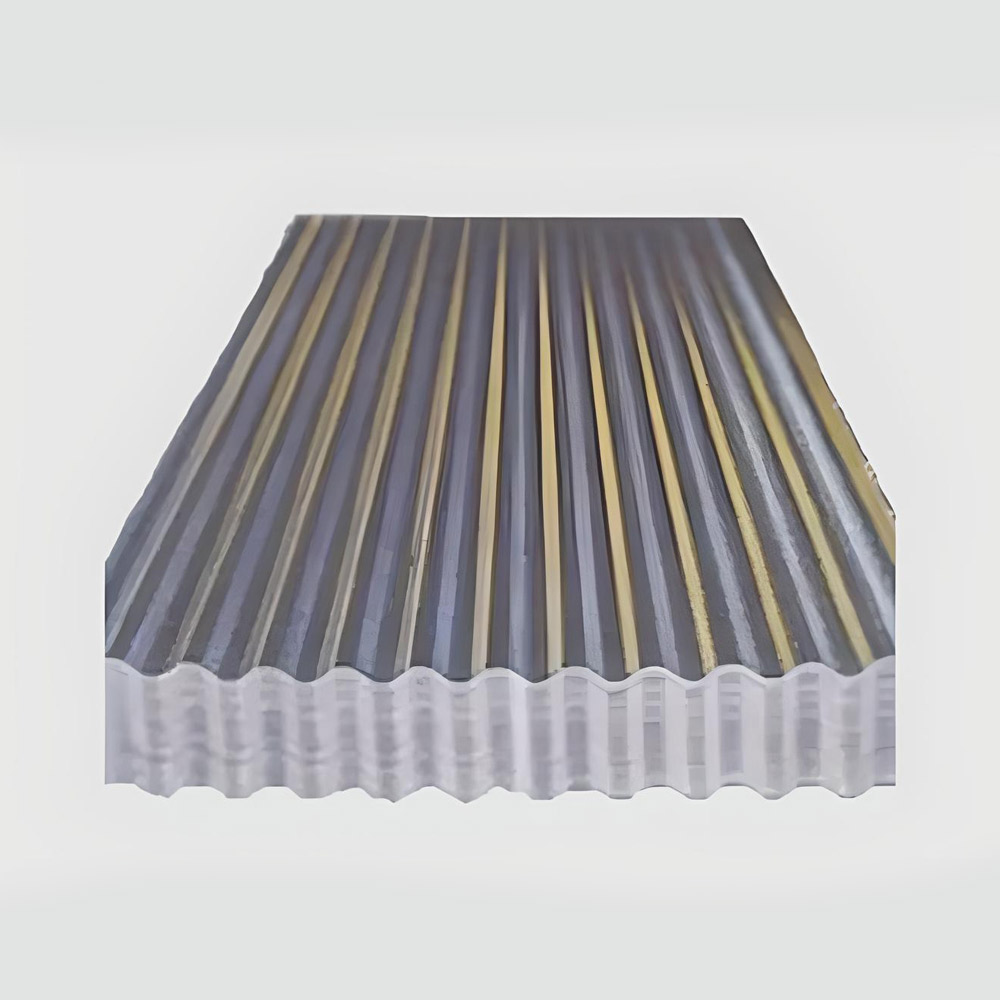

Galvanized Corrugated

Galvanized Corrugated

Homepage Products Painted Group Galvanized Corrugated

Easy to install.
Unbreakable and easily painted.
Resistant to heat and fire.

Roof and Facade Coverings
Silo and Warehouse Construction
Industrial Facilities

Thickness	Min. 0,30mm - Max. 1,20mm
Clear Closure	860mm
Size	1000mm - 5000mm

Purlin Spacing (m)	Galvanized Sheet Thickness (mm)
Purlin Spacing (m)	0,30	0,35	0,40	0,45	0,50	0,60	0,70	0,80	0,90	1,00	1,20
1,00	208	243	278	312	347	451	520	590	659	693	833
1,10	172	200	230	258	287	373	430	487	545	574	688
1,20	144	169	193	217	241	313	361	410	458	482	578
1,40	106	124	142	159	177	230	266	301	336	354	425
1,50	92	108	123	139	154	200	231	262	293	308	370
1,80	64	75	86	96	107	139	161	182	203	214	257
2,00	53	61	69	78	87	113	130	148	165	173	208
2,20	43	50	57	65	72	93	108	122	136	143	172
2,40	36	42	48	48	60	78	90	102	114	120	145
